HODESS Ceiling Systems

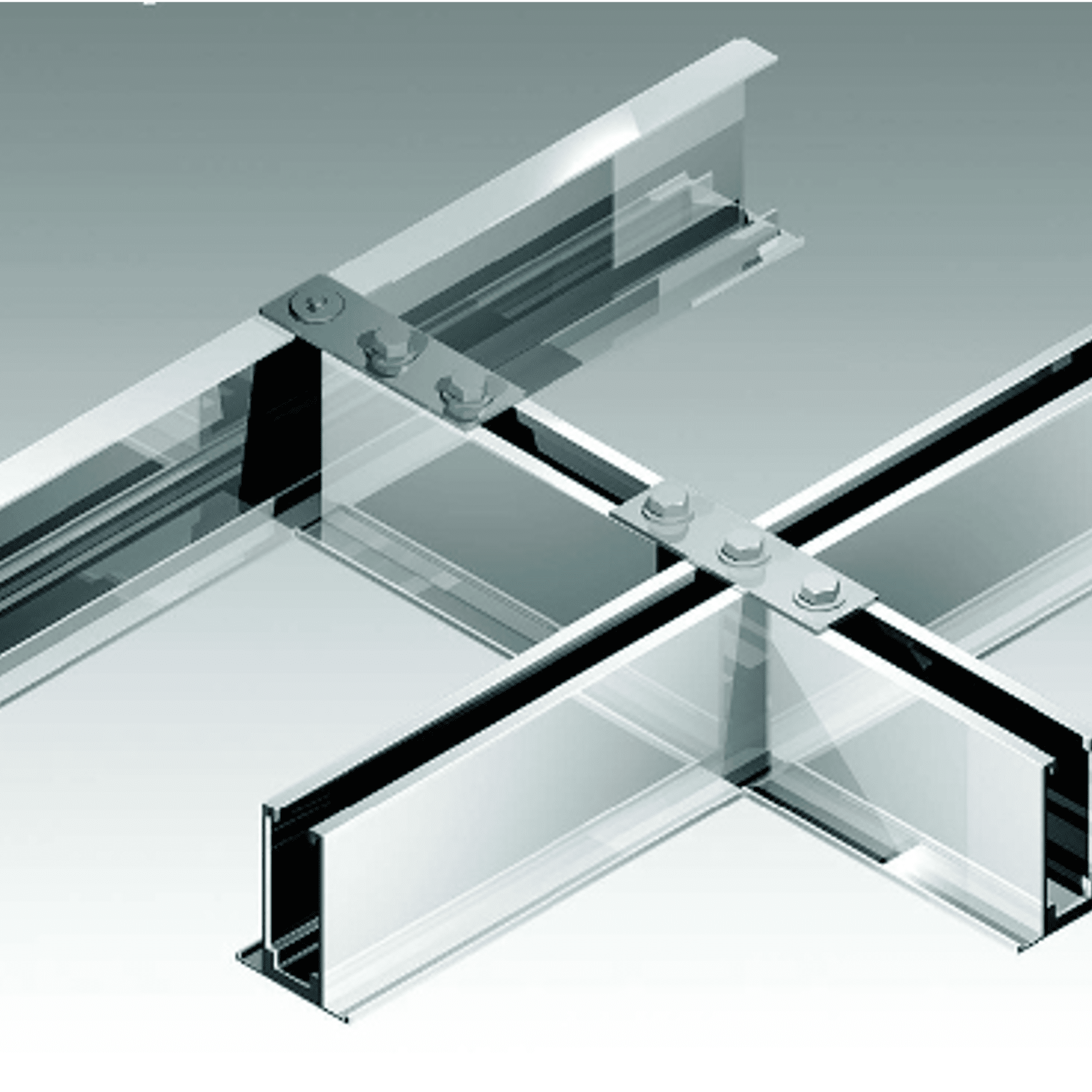

Power-T
Manufactured by Clean Rooms West, the Power-T™ Ceiling Grid is the strongest ceiling grid approved for ISO Class 3 to ISO Class 8 cleanroom construction.
Features:
- Pre-cut grid members minimize field modifications
- Typical 20′ mains
- Grid suspension: 4′ x 8′ or 8′ x 8′
- Extruded aluminum grid: 4″ x 3″
- Baked enamel white finish
- Standard PVC gasketing
- Optional non-outgassing Poron
- 4″ height allows for better structural support of HEPAs and lights
- Supports 100% coverage in fan filter units
- Highly corrosion resistant
- Larger mains allow for fast installation
- Wider grid suspension
- Provides room for ductwork in the interstitial space above the cleanroom
- Walkable

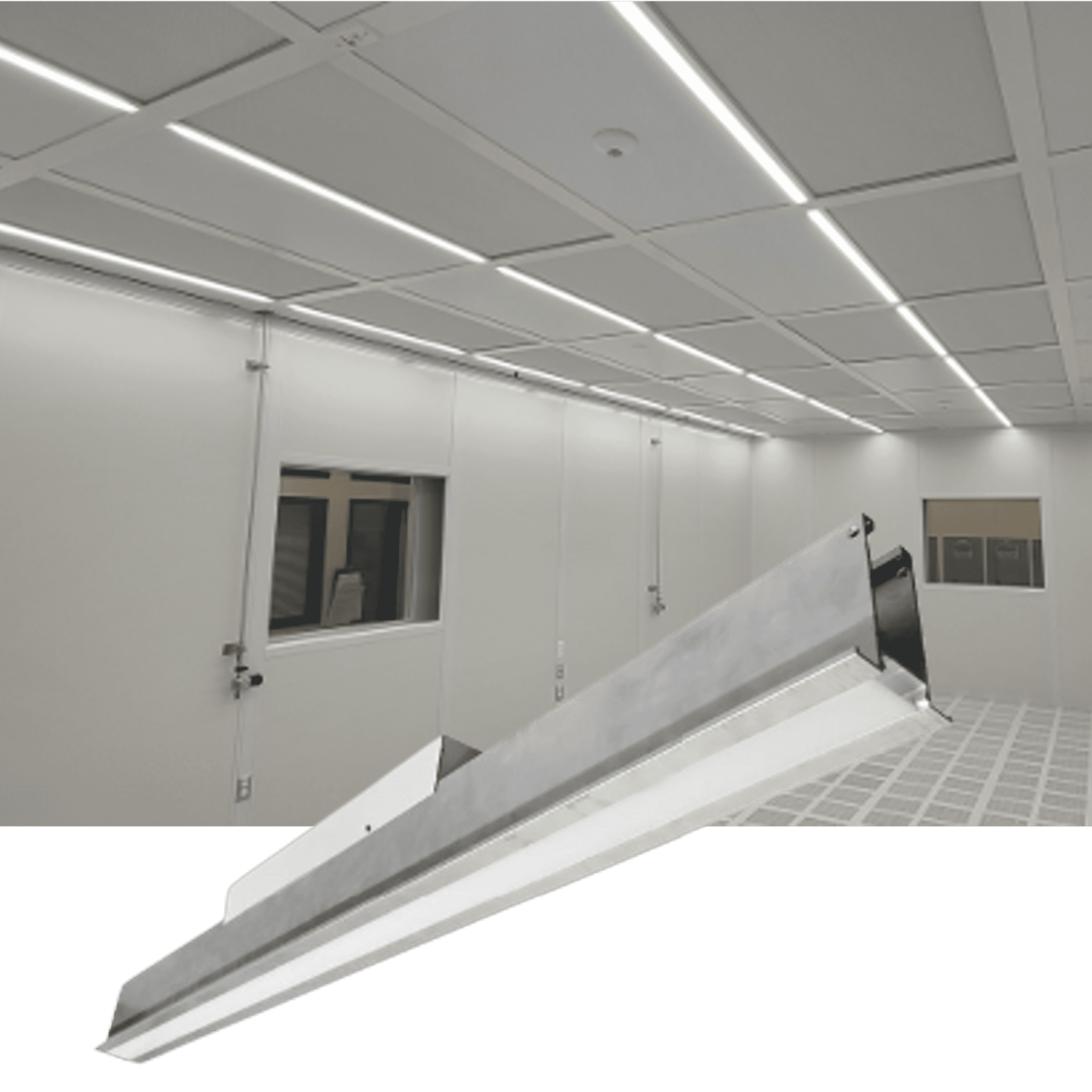

Power-T LED Luminaire
Features:
- Excellent for Use in Areas With High Filter Coverage
- Aluminum Power-T Cross
- Powder Coated White Finish
- White Polyester Finish Driver Box and Wiring Enclosure
- Acrylic White Lens
- 5,000 Lumen LED System per 4' Unit
- Tandem Mounting and Wiring: One Driver Operates two 4' units and is connected by one 6' cord
- Universal Voltage
- Available in White and Amber LED's
- UL Listed
Walk-On LED Luminaire
Manufactured by Clean Rooms West, the Power-T™ Ceiling Grid is the strongest ceiling grid approved for ISO Class 3 to ISO Class 8 cleanroom construction.
Features:
- Class 10,000-100,000 (ISO 7/8)
- Available Sizes: 1'x4', 2'x2', and 2'x4'
- Various Lumen Packages
- Construction: Heavy gauge galvanized steel welded housing.
- Top panel with reinforcement channels to be tested for 300 lbs. walk-on load.
- Two support/safety rails to prevent fall when top panel is open for maintenance
- Top Panel flips open 180° for maintenance
- Baked white powder coated finish
- Optional Stainless Steel Flange
- Inverted Clear Prismatic Lens, sealed with closed cell neoprene gasket
- Swing Open or Lay-in door assembly
- Universal Voltage 120V thru 277V
- 0-10 Dimming
- High efficiency driver coupled with Long-life LEDs, service life greater than 50,000 hours

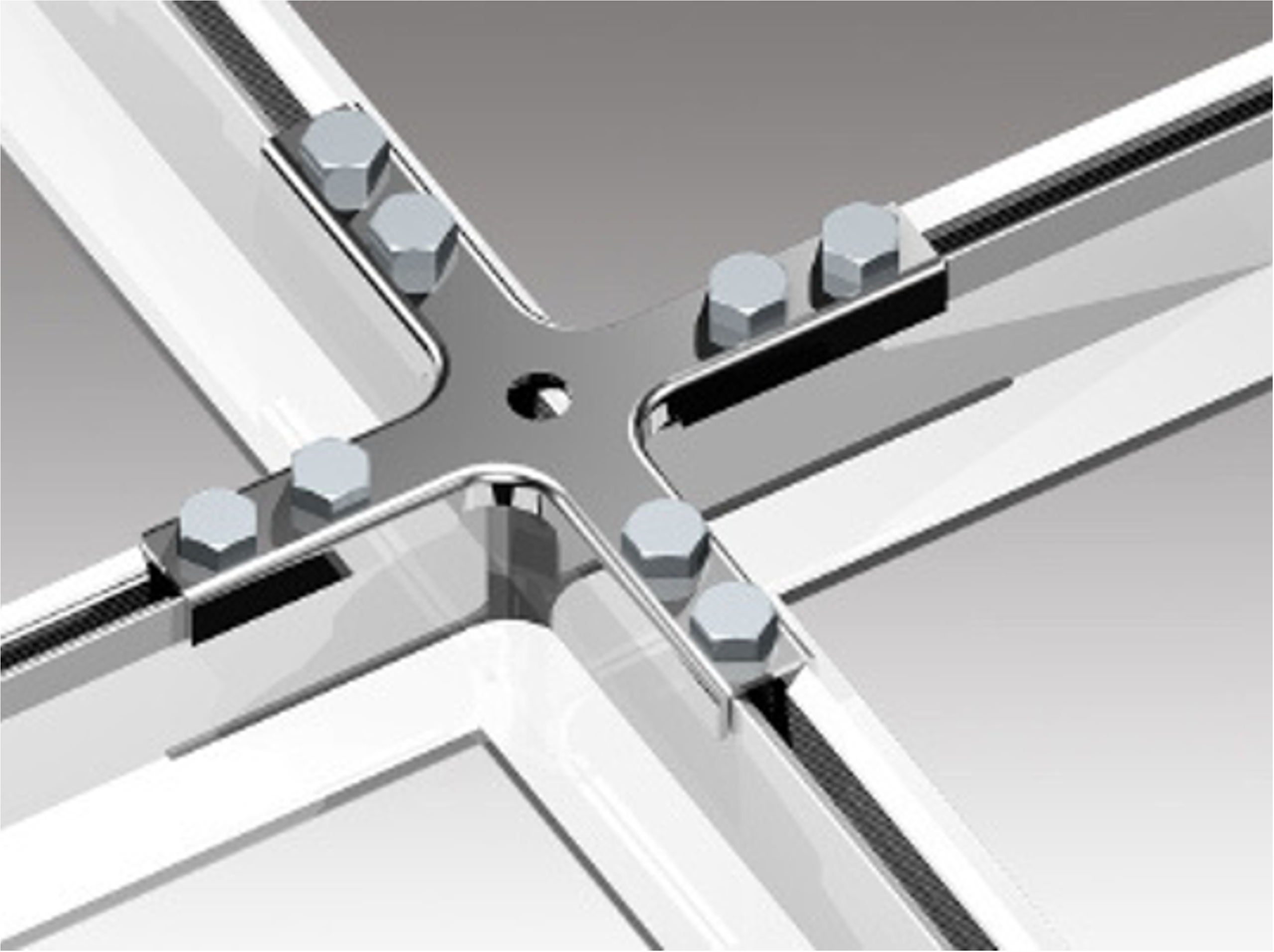

Precision-T
Manufactured by Clean Rooms West, this heavy-duty 1/4″ or 3/8” rod-suspension clean room ceiling grid system is utilized in semiconductor, pharmaceutical, medical device, biotechnology, laboratory and MEMS applications.
Features:
- Extruded Aluminum
- Heavy Duty
- 1/4″ or 3/8” Rod-Suspended
- Gasket Lined
- Integrated Flexible Sprinklers
- Continuous Thread for Easy Installation
- Can be Relocated/Reconfigured/Expanded
- Supports Fan/Filter HEPA Units
- Clear Anodized or Powder Coat Finish

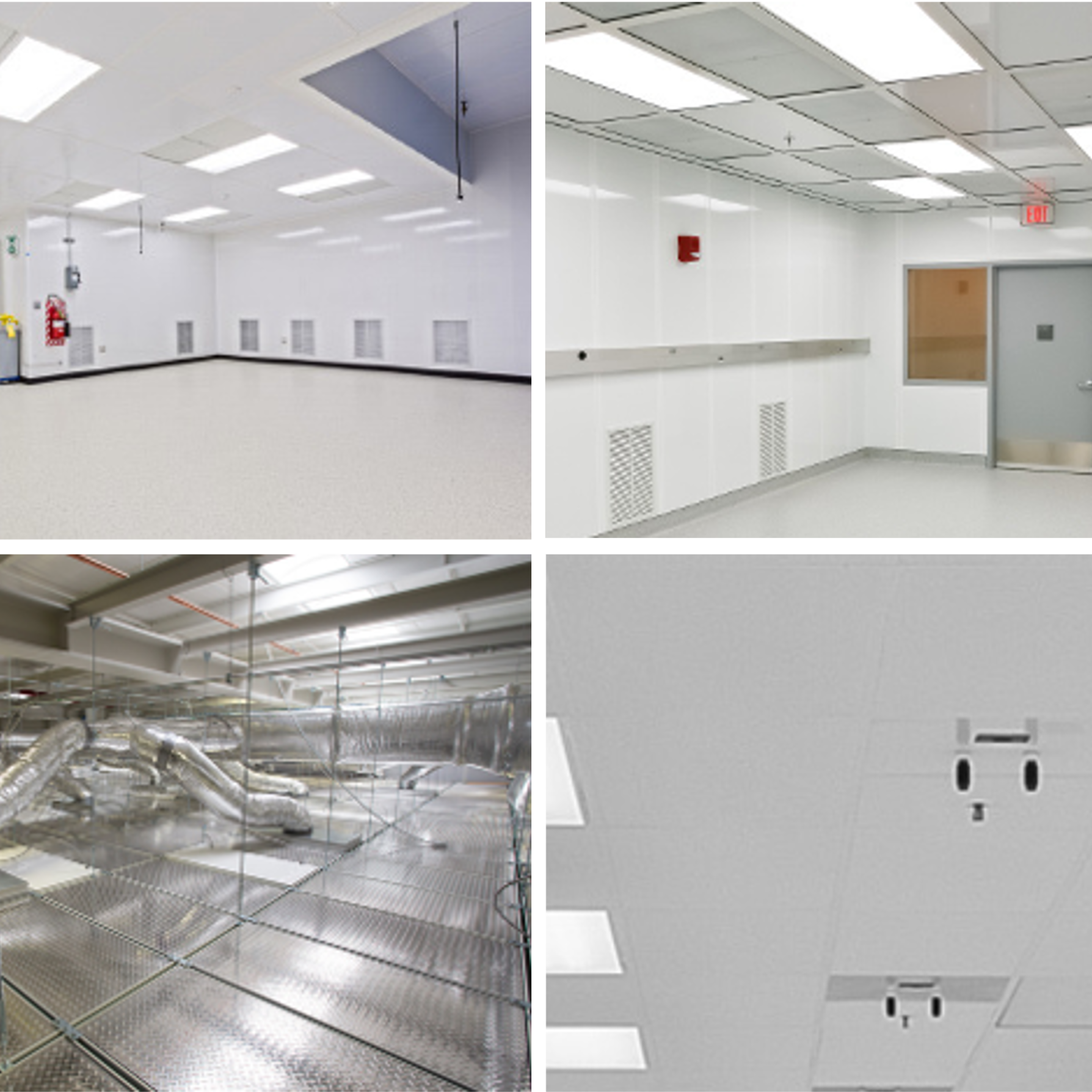

Ceiling TIles
Clean Rooms West offers a variety of ceiling tiles to meet specific cleanroom requirements:
Features:
- 1/4″ thick D-Lite
- Double-sided aluminum with polymer core
- 1/2″ thick all aluminum honeycomb
- 1/2″ thick gypsum
- Vinyl coating on one side
- 1/2″ thick gypsum
- Double-sided vinyl coating, edges are sealed
- POWER T ONLY
- 4″ thick all aluminum walkable ceiling panel
